WSH紫外明渠

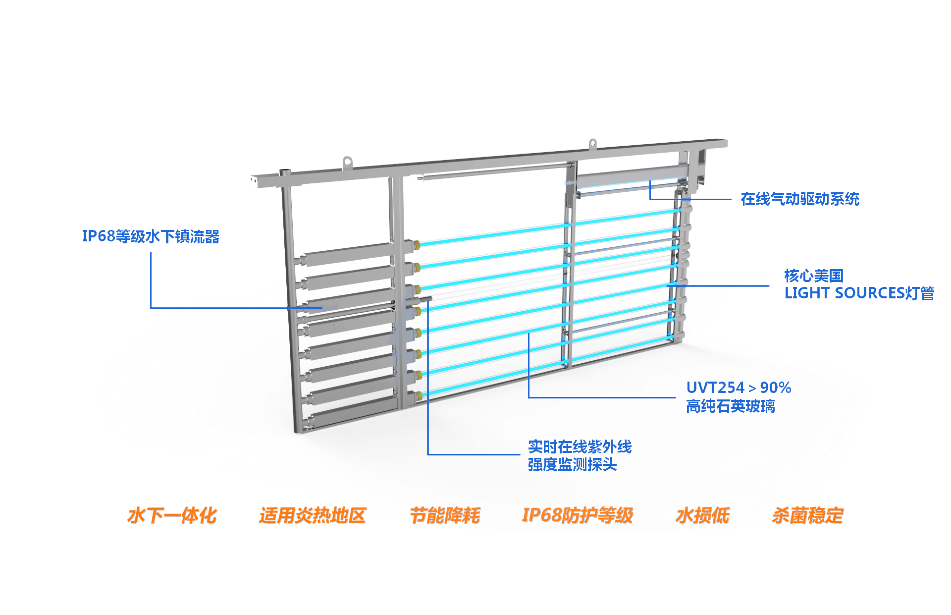

The ONYX-WSHI product is designed for channel installation and features a co-current lamp design with the water flow. It incorporates innovative technologies, including ballast water cooling, online mechanical cleaning, adjustable UV output intensity, and CFD flow simulation, significantly simplifying operation and maintenance.

The ONYX-WSHI complies with GB/T19837-2019, "Urban Water Supply and Drainage Ultraviolet Disinfection Equipment," and has passed microbial testing to verify that the UV dose meets the requirements for inactivating E. coli and fecal coliforms.

The Class A UV dose is >20mj/cm², and the recycled water UV dose is >80mj/cm².


Advantages

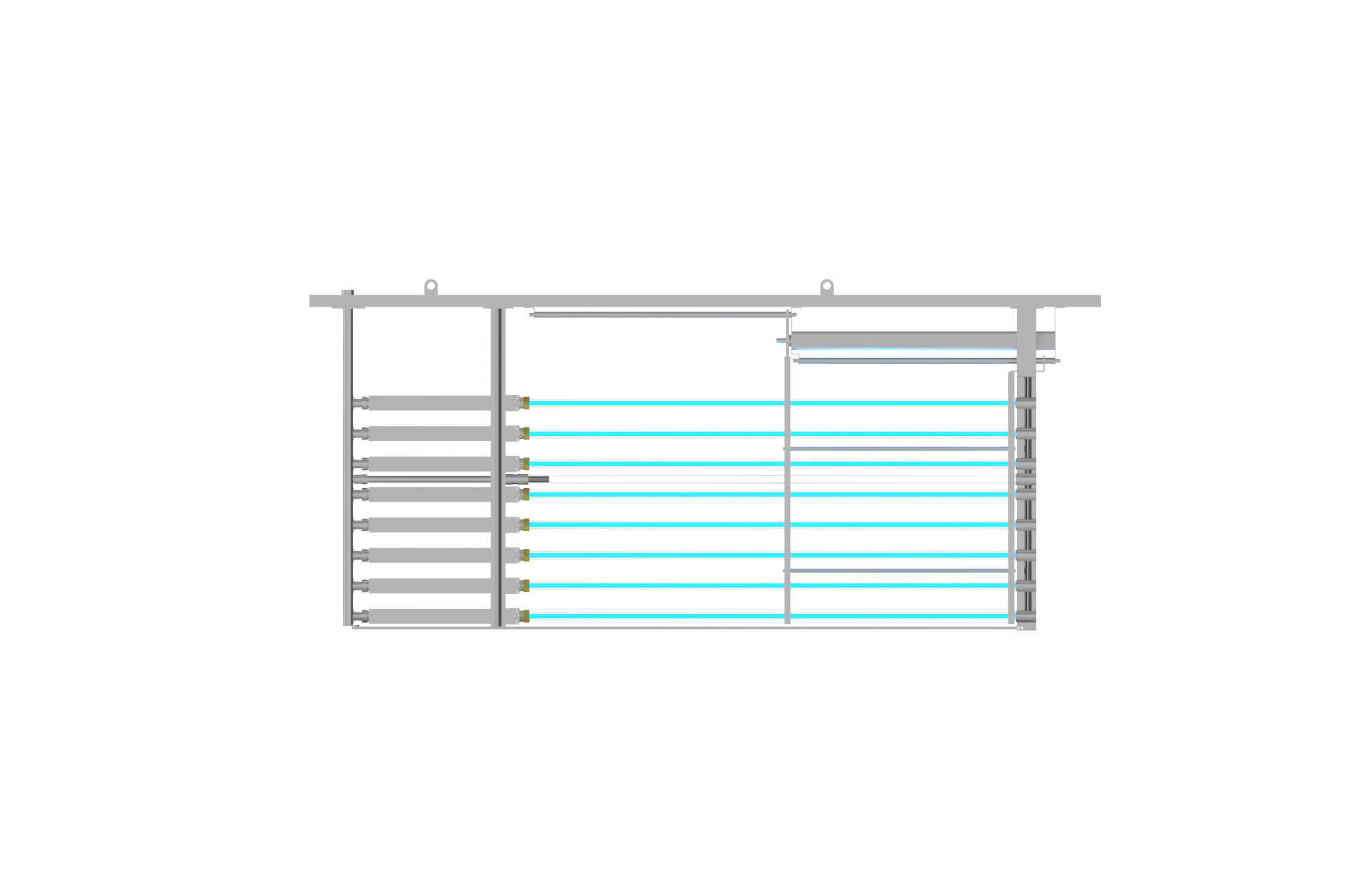

Horizontal Lamp Installation:

The UV lamps are positioned horizontally with the water flow. Each module contains eight 320W lamps. The optimal lamp-ballast match and the water-cooled ballast improve the lamp's effective output and maintain stability, increasing photoelectric conversion efficiency by 5-8%.

Unique in China:

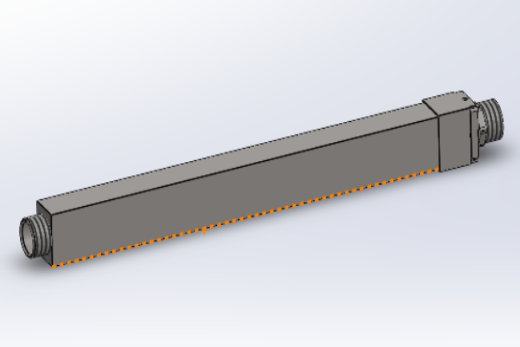

Ballast water cooling technology, underwater integrated design

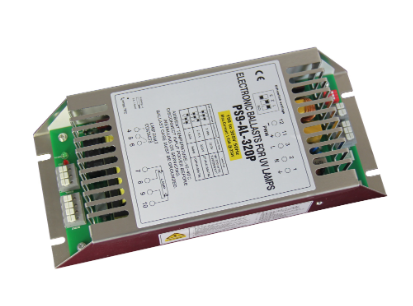

The ballast is sealed in the module and cooled naturally by flowing water, eliminating the need for external air cooling or a separate air-conditioning room. The electronic ballast is sealed to IP68, doubling its lifespan.

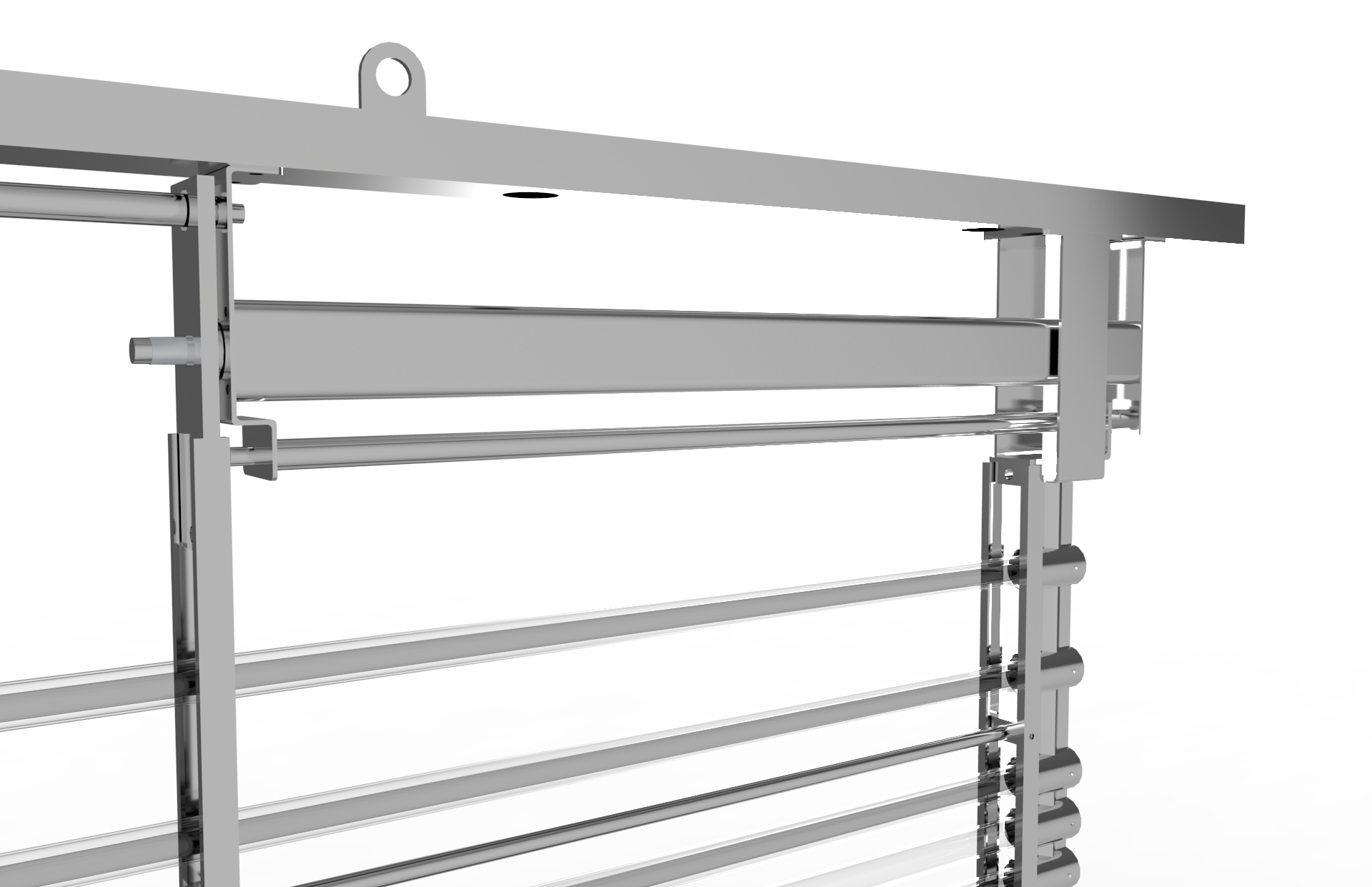

Automatic cleaning system:

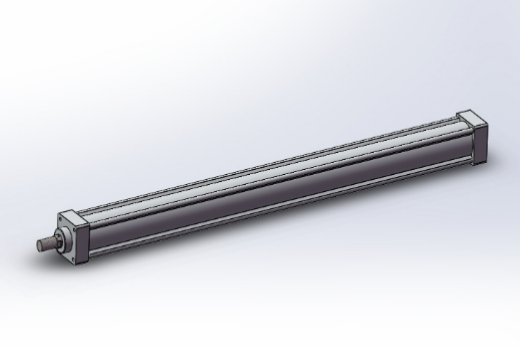

It uses online mechanical cleaning combined with chemical cleaning. The cleaning drive system is pneumatically driven to prevent contamination from hydraulic oil leakage. Cleaning does not affect the normal operation of the disinfection system, and the cleaning frequency can be adjusted on site.

Adjustable output power:

Adjustable within the range of 50%-100%, it not only ensures the effective output of UV light but also saves energy and is environmentally friendly.

IoT Control:

The device provides real-time access to information on lamp operation, including UV intensity, current, and voltage. It also connects to various water quality monitoring signals, such as residual chlorine and flow rate, allowing the device's UV lamp output power and on/off to be adjusted based on actual water quality signals.

On-site device operation status can be viewed on PC and mobile devices, providing real-time access to device information.



Parameter

Product Series

ONYX-WSH

灯管类型

254nm低压汞齐灯

灯管功率

320W

灯管功率调节范围

50-100%

模块配置

8支灯/模块

清洗驱动系统

气动驱动

自动清洗

在线机械清洗加化学清洗

紫外线强度传感器

每条渠1个

水位传感器

每条渠1个

液位控制装置

固定堰/电动堰门/拍门可选

水下材质

不锈钢316

水上材质

不锈钢304/316可选

安装位置

室内或室外

控制柜材质

不锈钢304，IP54

控制系统

触摸屏+PLC控制

电源规格

380V/50HZ
